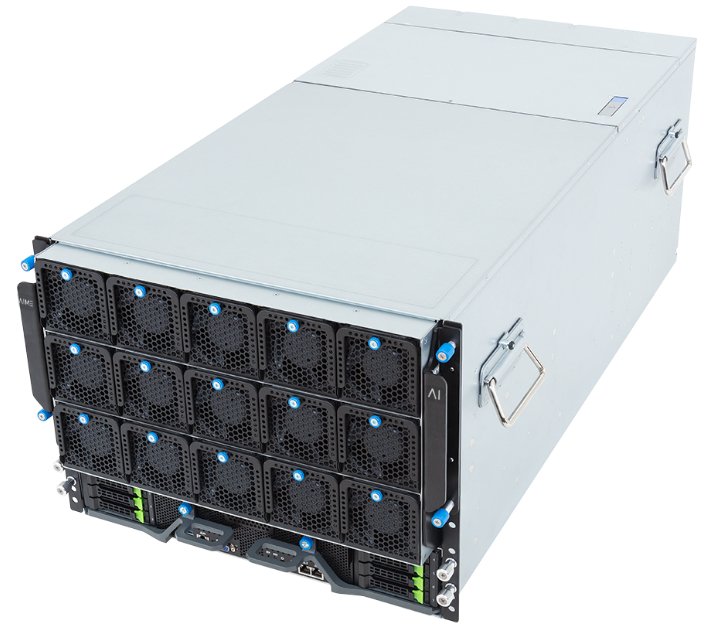

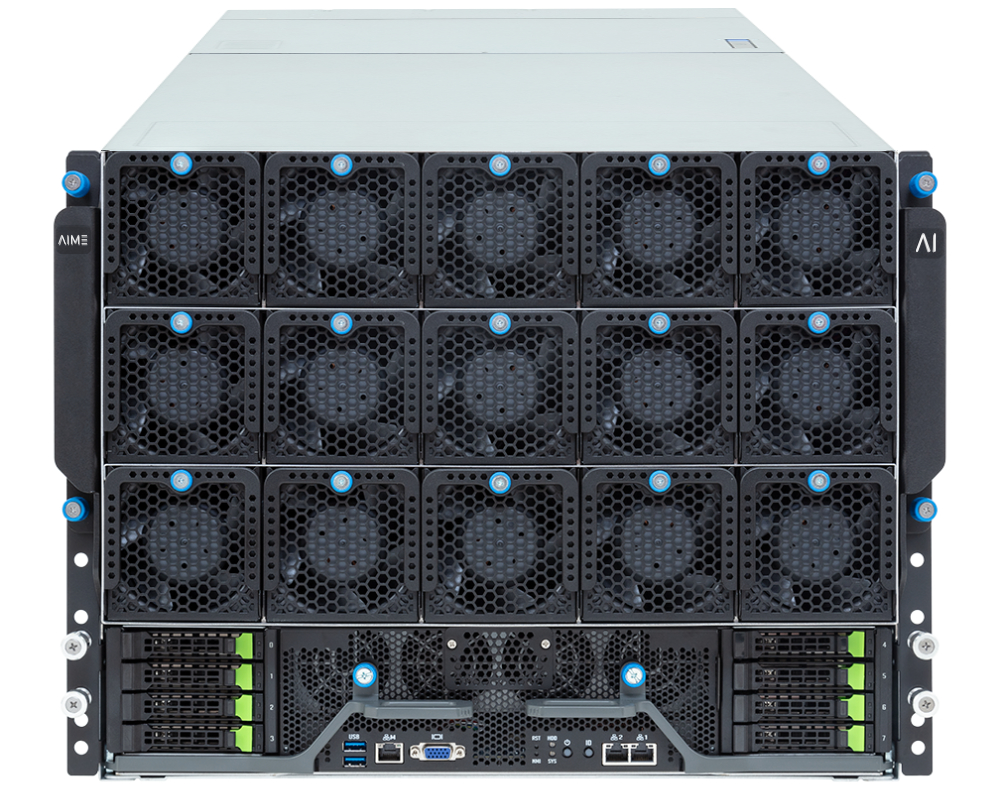

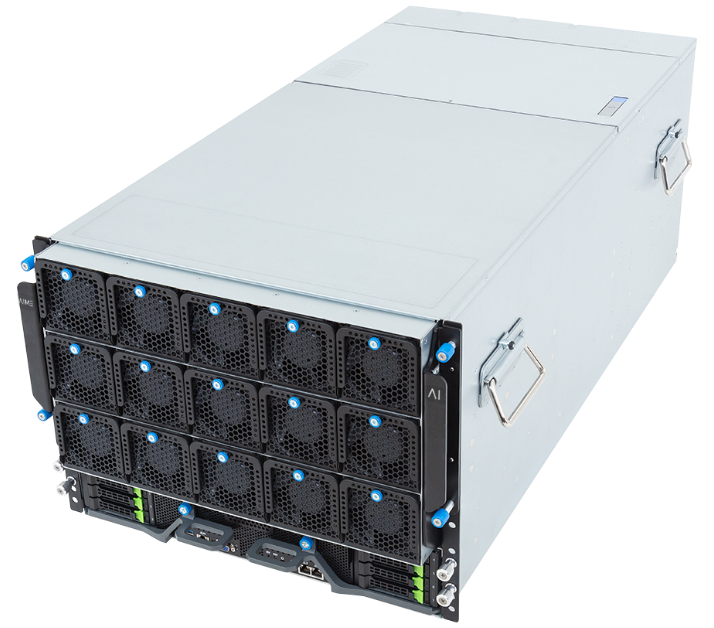

AIME GX8-B200 HGX Server
The AIME GX8-B200 is the HGX deep learning server based on the Gigabyte G893-ZD1-AAX5 barebone, it hosts 8 of the most advanced NVIDIA deep learning accelerators: the NVIDIA B200 SXM.
The AIME GX8-B200 is the ultimate deep learning accelerator and ai inference server. The AIME GX8-B200 delivers:
-

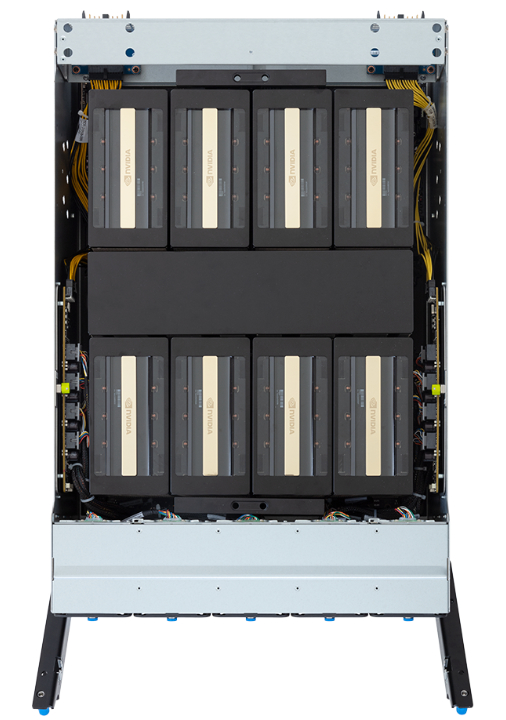

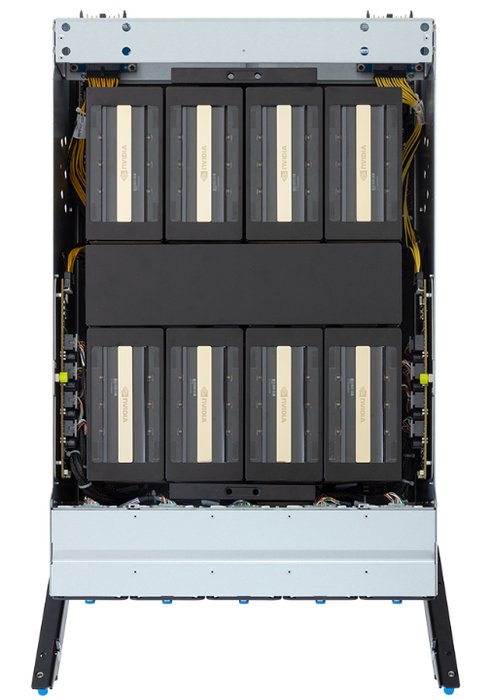

8x NVIDIA B200 SXM with 180 GB HBM3e memory each, with a total of 1.440 GB (1,4 TB) GPU memory
-

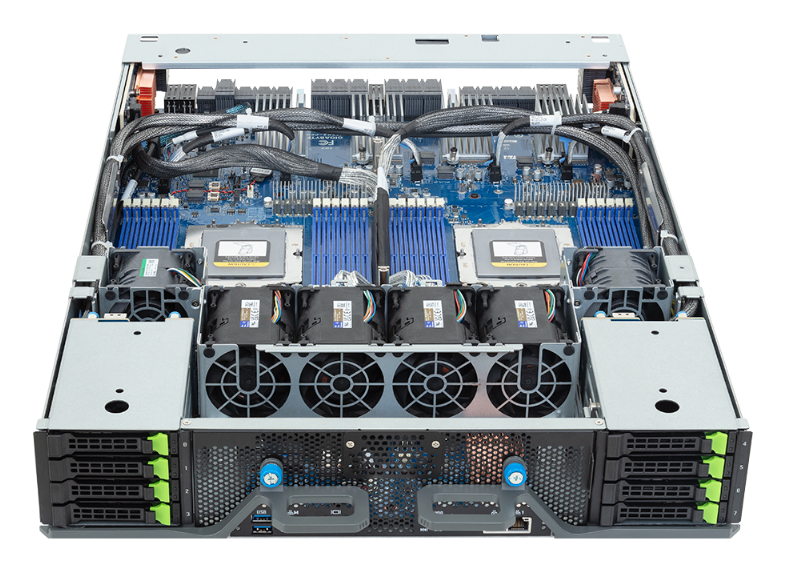

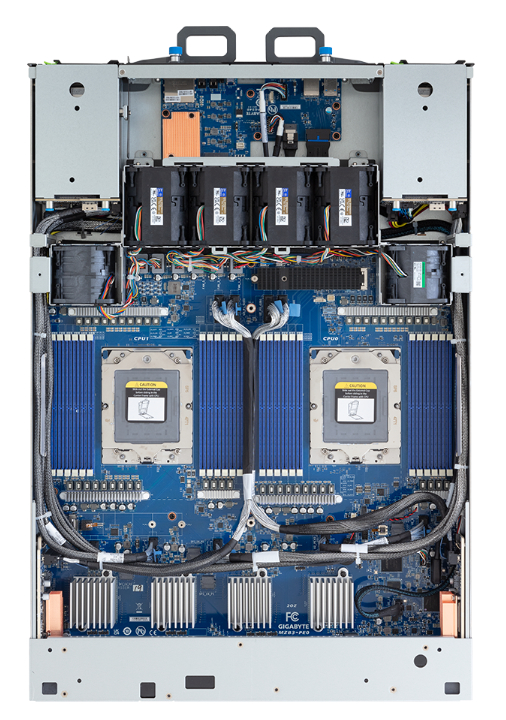

Dual AMD EPYC Turin CPU performance with up to 2x 192 CPU cores with a total of 768 CPU threads
-
1,8 TB/s NVLINK switch connectivity between all accelerators
-
up to 3072 GB (3TB) DDR5 memory, 12 channel memory with 24 equipped RAM slots
-
up to 8x native NVMe SSD drives with up to 210 TB SSD storage
-
128 GB/s PCI 5.0 bus speeds between CPU memory and GPUs
-
up to 8x 400 GBit/s OSFP network connectivity for cluster computing with a total network through put of 400 GB/s
Built to perform 24/7 for most reliable high performance cluster computing. Either at your inhouse data center, co-location or as a hosted solution.
AIME GX8-B200 - Configuration
Technical Details AIME GX8-B200
| Type | Rack Server 8U, 100cm depth |
| CPU (configurable) |
EPYC Turin 2x EPYC 9555 (64 cores, 3.20 / 4.40 GHz) 2x EPYC 9655 (96 cores, 2.60 / 4.50 GHz) 2x EPYC 9755 (128 cores, 2.70 / 4.10 GHz) 2x EPYC 9965 (192 cores, 2.25 / 3.70 GHz) |
| RAM | 1536 / 2304 / 3072 GB DDR5 ECC memory |
| GPU Options | 8x NVIDIA B200 SXM 180 GB |
| Cooling |

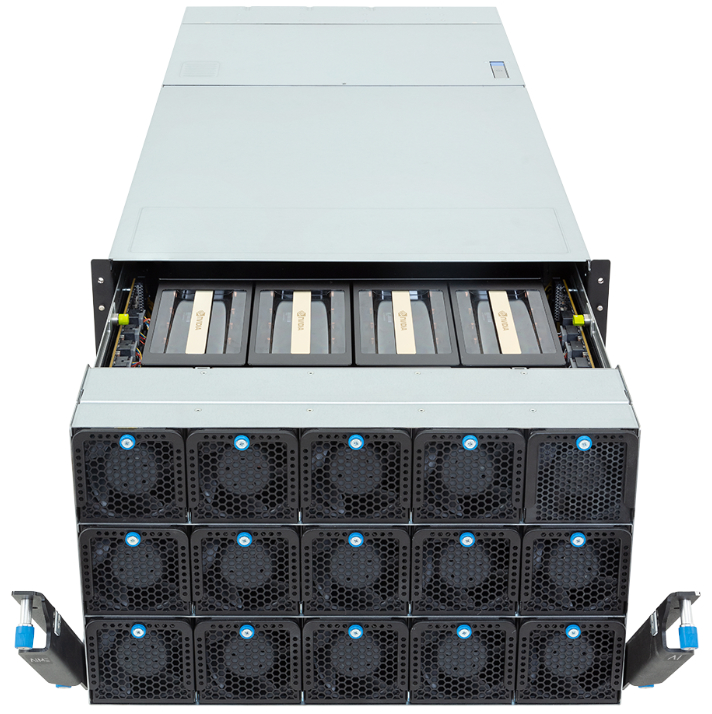

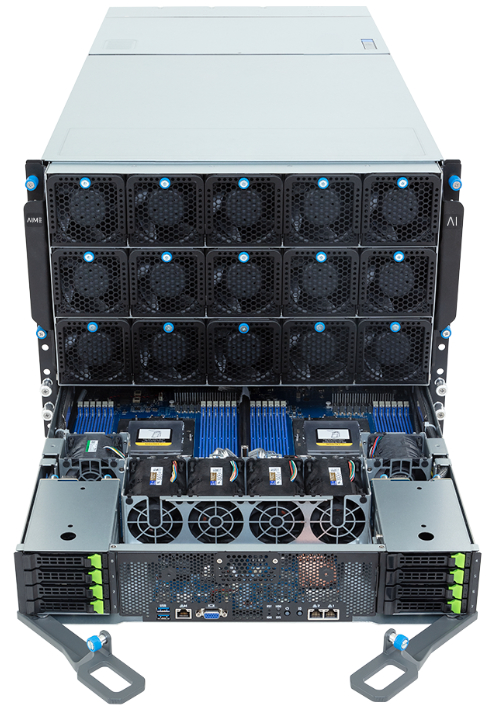

Motherboard & CPU fans: 2 x 60x60x56mm (24,600/24,200rpm) 4 x 60x60x76mm (21,800/20,500rpm) PCIe slot fans: 4 x 80x80x56mm (15,500/14,900rpm) GPU fans: 15 x 80x80x80mm (19,600/15,600rpm) |
| Storage |
Up to 8x 30.72 TB U.3 NVMe PCIe 5.0 SSD Tripple Level Cell (TLC) quality 10.000 MB/s read, 4.900 MB/s write MTBF of 2.500.000 hours and 5 years manufacturer's warranty with 1 DWPD |
| Network |
2x IPMI LAN 2x 10 GBE LAN RJ45 (onboard) up to 8x 400 GBE OSFP |
| USB | 2 x USB 3.2 Gen1 Type-A (front) |

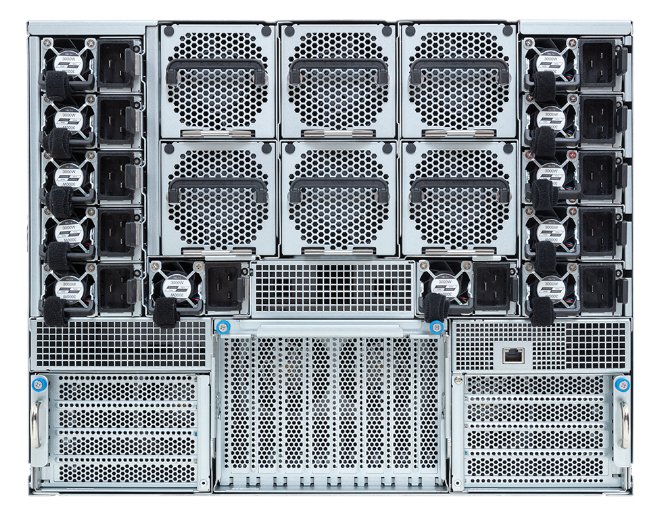

| PSU | 6+6x 3000W redundant power 80 PLUS Titanium certified (96% efficiency) |
| Noise-Level | 95dBA |
| Dimensions (WxHxD) | 447mm x 351mm (8U) x 923mm
17.6" x 13.82" x 36.3" |
Operating Environment | Operating: 10°C to 30°C, 8% to 80% (non-condensing) Non-operating: -40°C to 60°C, 20% to 95% (non-condensing) |
AIME GX8-B200 HGX Server
The AIME GX8-B200 is the HGX deep learning server based on the Gigabyte G893-ZD1-AAX5 barebone, it hosts 8 of the most advanced NVIDIA deep learning accelerators: the NVIDIA B200 SXM.
The AIME GX8-B200 is the ultimate deep learning accelerator and ai inference server. The AIME GX8-B200 delivers:
-
8x NVIDIA B200 SXM with 180 GB HBM3e memory each, with a total of 1.440 GB (1,4 TB) GPU memory
-
Dual AMD EPYC Turin CPU performance with up to 2x 192 CPU cores with a total of 768 CPU threads
-
1,8 TB/s NVLINK switch connectivity between all accelerators
-
up to 3072 GB (3TB) DDR5 memory, 12 channel memory with 24 equipped RAM slots
-
up to 8x native NVMe SSD drives with up to 210 TB SSD storage
-
128 GB/s PCI 5.0 bus speeds between CPU memory and GPUs
-
up to 8x 400 GBit/s OSFP network connectivity for cluster computing with a total network through put of 400 GB/s
Built to perform 24/7 for most reliable high performance cluster computing. Either at your inhouse data center, co-location or as a hosted solution.
Technical Details AIME GX8-B200
| Type | Rack Server 8U, 100cm depth |
| CPU (configurable) |
EPYC Turin 2x EPYC 9555 (64 cores, 3.20 / 4.40 GHz) 2x EPYC 9655 (96 cores, 2.60 / 4.50 GHz) 2x EPYC 9755 (128 cores, 2.70 / 4.10 GHz) 2x EPYC 9965 (192 cores, 2.25 / 3.70 GHz) |
| RAM | 1536 / 2304 / 3072 GB DDR5 ECC memory |
| GPU Options | 8x NVIDIA B200 SXM 180 GB |
| Cooling |
Motherboard & CPU fans: 2 x 60x60x56mm (24,600/24,200rpm) 4 x 60x60x76mm (21,800/20,500rpm) PCIe slot fans: 4 x 80x80x56mm (15,500/14,900rpm) GPU fans: 15 x 80x80x80mm (19,600/15,600rpm) |
| Storage |
Up to 8x 30.72 TB U.3 NVMe PCIe 5.0 SSD Tripple Level Cell (TLC) quality 10.000 MB/s read, 4.900 MB/s write MTBF of 2.500.000 hours and 5 years manufacturer's warranty with 1 DWPD |
| Network |
2x IPMI LAN 2x 10 GBE LAN RJ45 (onboard) up to 8x 400 GBE OSFP |
| USB | 2 x USB 3.2 Gen1 Type-A (front) |
| PSU | 6+6x 3000W redundant power 80 PLUS Titanium certified (96% efficiency) |
| Noise-Level | 95dBA |
| Dimensions (WxHxD) | 447mm x 351mm (8U) x 923mm
17.6" x 13.82" x 36.3" |
Operating Environment | Operating: 10°C to 30°C, 8% to 80% (non-condensing) Non-operating: -40°C to 60°C, 20% to 95% (non-condensing) |
AIME GX8-B200 - Configuration
AIME Sales Team
- Ships in 30-60 Days
- 3 Years warranty included
- Runs 24/7 for years, no overheating
