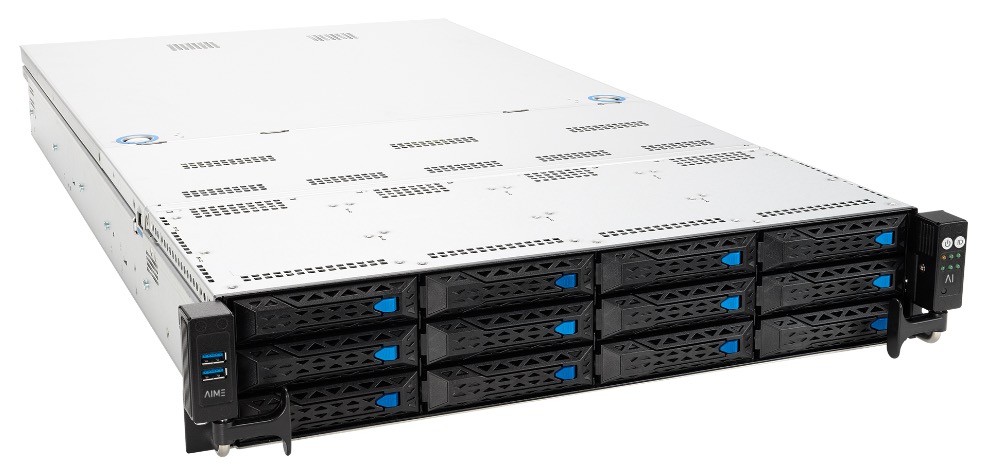

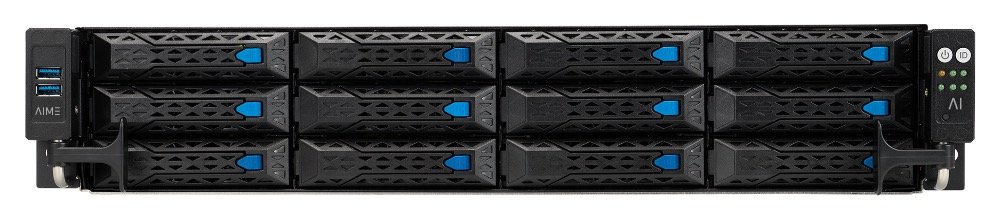

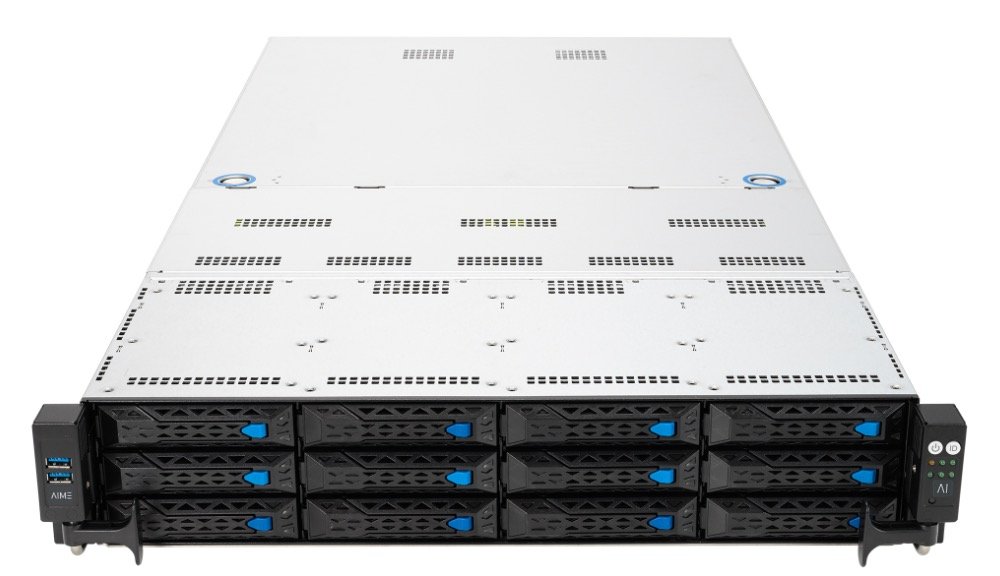

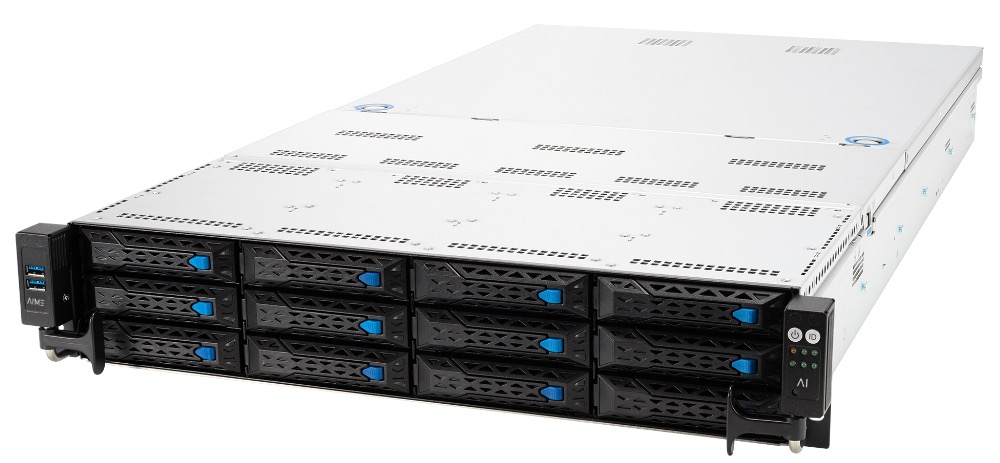

AIME RS520H
Backup Storage Server
The AIME RS520H is an enterprise rack storage servers based on the ASUS RS520A-E11 barebone. Packed into a dense form factor of two height units the AIME R520H offers:
- AMD EPYC Rome/Milan CPU performance with up to 64 cores
- up to 12x HDD drives to store up to 480 TB data
- up to 2048 GB (2 TB) DDR4 memory
- PCI 4.0 bus speeds
- up to 200 GBit/s network connectivity
The AIME RS520H is built to perform 24/7 for most reliable backup storage server either at your inhouse data center, co-location or as a hosted solution.
Technical Details AIME RS520H
| Type | Rack Server 2U, 84cm depth |
| CPU (configurable) |
Milan EPYC 7313 (16 cores, 3.0 / 3.7 GHz) EPYC 7443 (24 cores, 2.85 / 4.0 GHz) EPYC 7543 (32 cores, 2.8 / 3.7 GHz) EPYC 7713 (64 cores, 2.0 / 3.6 GHz) Rome EPYC 7232 (8 cores, 3.1 GHz) |
| RAM | 64 / 128 / 256 / 512 / 1024 / 2048 GB DDR4 ECC memory |
| Cooling | CPU and HDDs are cooled with an air stream provided by 8 high performance fans with > 100000h MTBF |
| Storage |
Hardware Raid 0/1/5/10/50 of up to 12x 20 TB SATA HDDs, 7200 RPM, 128 MB Cache or up to 12x 7.68 TB SATA Enterprise SSDs MTBF of 2,000,000 hours and 5 years manufacturer's warranty with 1 DWPD |
| Network |
2x 1 GBit LAN RJ45 1x IPMI LAN RJ45 optional additional: 2x 10 GBit LAN SFP+ or RJ45 or 2x 25 GBit LAN SFP28 or 1x 100 GBit LAN QSFP28 or 2x 100 GBit LAN QSFP28 or 1x 200 GBit LAN QSFP56 or 1x 400 GBit LAN OSFP |
| USB |
2x USB 3.2 Gen1 ports (front) 2x USB 3.2 Gen1 ports (back) |
| PSU | 1+1 1600 Watt redundant power 80 PLUS Titanium certified (96% efficiency) |
| Noise-Level | 90 dBA |
| Dimensions (WxHxD) | 449mm x 88.1mm (2U) x 840mm
17.68" x 3.47" x 33.07" |
Operating Environment | Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 60℃ |
