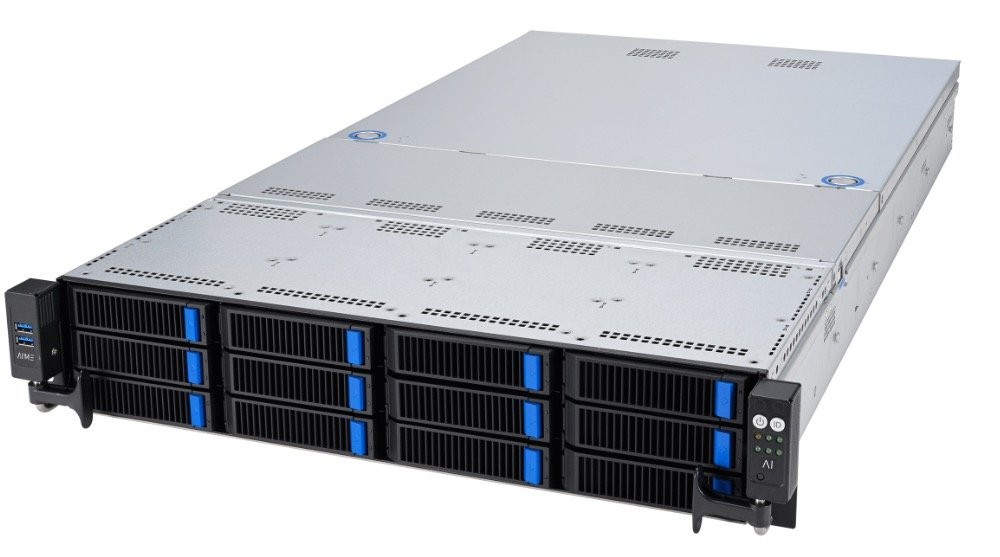

AIME RS524 GPU Rack Workstation

The AIME RS524 is the next generation enterprise Deep Learning server based on the ASUS ESC520A-E12, configurable with up to 2 of the most advanced deep learning accelerators and GPUs for most demanding multi-GPU HPC tasks.
Packed into a dense form factor of two height units, EPYC Genoa CPU performance with up to 96 cores, the latest DDR5 memory, the fastest PCI 5.0 bus speeds and up to 400 GBit network connectivity.

Built to perform 24/7 for most reliable high performance computing. Either at your inhouse data center, co-location or as a hosted solution.

Technical Details

Type Rack Server 2U, 80cm depth
CPU (configurable) Genoa
EPYC 9124 (16 cores, Genoa, 3.0 / 3.7 GHz)
EPYC 9224 (24 cores, Genoa, 2.5 / 3.7 GHz)
EPYC 9354 (32 cores, Genoa, 3.25 / 3.8 GHz)
EPYC 9454 (48 cores, Genoa, 2.75 / 3.8 GHz)
EPYC 9554 (64 cores, Genoa, 3.1 / 3.75 GHz)
EPYC 9654 (96 cores, Genoa, 2.4 / 3.7 GHz)
RAM 96 / 192 / 384 / 768 GB DDR5 ECC memory
GPU Options 1 to 4x NVIDIA H100 80GB or
1 to 4x NVIDIA A100 80GB or
1 to 4x NVIDIA L40S 48GB or
1 to 4x NVIDIA RTX 6000 Ada 48GB or
1 to 4x NVIDIA RTX A6000 48GB or
1 to 4x NVIDIA RTX A5000 24GB
Cooling CPU and GPUs are cooled individualy with an air stream provided by 8 high performance fans (2 per GPU and 4 for CPU) with > 100000h MTBF
Storage Up to 2x 15.36 TB U.2 NVMe PCIe 4.0 SSD
Tripple Level Cell (TLC) quality
6800 MB/s read, 4000 MB/s write
MTBF of 2,000,000 hours and 5 years manufacturer's warranty with 1 DWPD

Optional Hardware RAID:

Up to 4x HDD 20 TB SATA RAID 0/1/5/10 or
Up to 4x SSD 7.68 TB SATA RAID 0/1/5/10 or
Up to 4x SSD 3.84 TB NVMe RAID 0/1/5/10 or
Up to 4x SSD 7.68 TB NVMe RAID 0/1/5/10 or
Up to 4x SSD 15.36 TB NVMe RAID 0/1/5/10
Network 2x 1 GBit LAN RJ45
1x IPMI LAN RJ45
optional additional:
2x 10 GBit LAN SFP+ or RJ45 or
2x 25 GBit LAN SFP28 or
1x 100 GBit LAN QSFP28
USB 4x USB 3.2 Gen1 ports (front)
2x USB 3.2 Gen1 ports (back)
PSU 1+1 2600 Watt redundant power
80 PLUS Titanium certified (96% efficiency)
Noise-Level 90 dBA
Dimensions (WxHxD) 440mm x 88.9mm (2U) x 800mm
17.30" x 3.5" x 31.50"
Operating Environment Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃

  • AIME RS524 - GPU Rack Server
required
required
required
required
required
required
required
required
required
0,00 €
Price excluding VAT
